    1.0 AMP PCB Mount Connector Pitch 1.27mm Board To Board Female Dual Row SMT Type High Speed

    Ask Lasest Price
    Certification : ISO9001, ISO14001, IATF16949
    Supply Ability : 10k pcs daily capacity
    Delivery Time : 2 weeks
    • Product Details
    • Company Profile

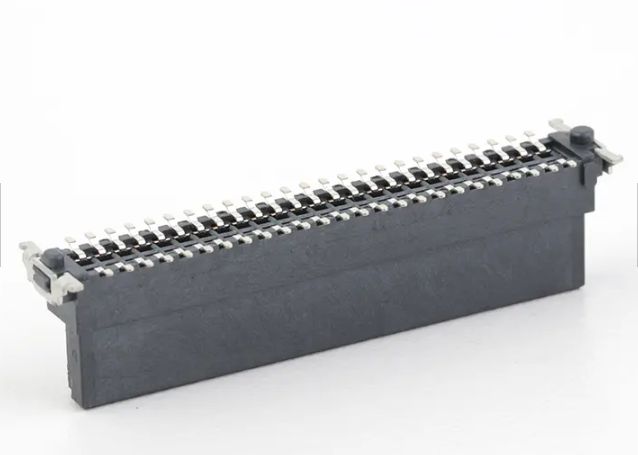

    1.0 AMP PCB Mount Connector Pitch 1.27mm Board To Board Female Dual Row SMT Type High Speed

    PCB mount connector Pitch 1.27mm Board To Board Female Dual Row SMT Type high speed connector


    The typical product spacing of Shinelinkconn's board-to-board and wire-to-board connectors is 1.27mm, which effectively improves PCB space utilization. With a high signal transmission speed of up to 4Gbps, and a shock and vibration resistance of up to 2000Hz, these connectors are suitable for harsh operating environments. Designed with double-contact spring terminals, the high-speed connectors allow for a certain amount of angular misalignment during assembly, and can prevent mis-mating through their fool-proof chamfer design. The design of a small terminal contact area can further ensure the minimization of contact resistance. The weld tap design helps reduce the stress on the signal terminals during assembly and increase the retention force between the product and the PCB. The mating height for these mezzanine connectors range from 8 to 20mm with the number of terminal pins ranging from 10 to 160 pins.


    Current Rating1.0 AMP
    Contact Resistance20 mΩ Max
    Withstand Voltage500 V AC/DC
    Insulation Resistance1000MΩ Min
    Operation Temperature-40℃ to 105℃
    Contact MaterialCoppy Alloy
    Products NamePCB Header Connector
    Pitch1.27mm(0.05'')
    Mounting TypeThrough Hole
    Contact PlatingAu over Ni
    Insulator MaterialLCP+30%GF(UL94V-0)
    TerminationSolder
    insertion Force2N Max
    Withdrawal Force0.3N Min
    Durability300 Mating Cycles
    Solder Temperature260℃ for 10 seconds
    PackingTube/Reel
    ColorBlack
