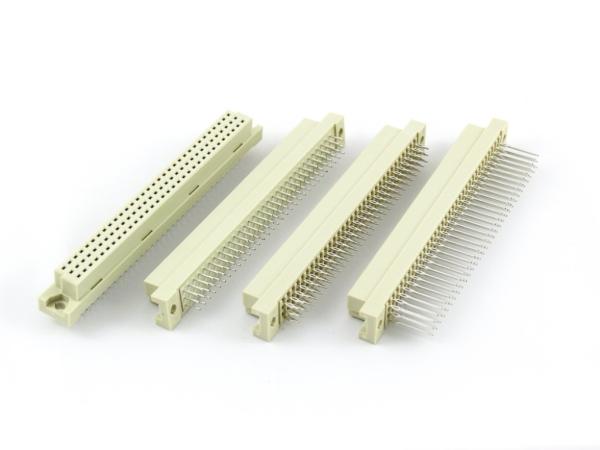

Din41612 C type 32pin, 64pin, 96 pin female connector

Type: Din 41612 connectors

Place of Origin: Guangdong, China

Application: PCB

Gender: female

Pitch:2.54mm

Row number: triple row

termination styles: dip solder

termination on PCB: 3.0mm /7.0mm

contact number:16/24/32/48/64/96pin

type: R type / half R

Plating: Tin/gold flash/5u''gold/10u''gold/15u''gold/30u''gold

Supply Ability

Supply Ability:30000 Piece/Pieces per Week

Packaging & Delivery

Packaging Details: Tube / Reel / PE packing

Port: Shenzhen

2.54mm straight triple row female Din41612

Specifications:

Material and plating:

Housing: PBT, UL94V0, beige or gray;

Contact: Brass;

Lock: Phosphor bronze;

Contact area plating Gold plated, and tin or gold flash plated on soldering area,

Electrical characteristics:

Current rated: 2A;

Dielectrical withstanding voltage: AC 1000V for 1 minute;

Insulation resistance: 10MΩ, min at DC 500V;

Contact resistance: 10Mω max at DC 100mA;

Operating temperature: -55 degree to 125 degree;

RoHS compliant;

FAQ:

Q: Are you the trading company or manufacturer? A: We are professional manufacturer specialized in various connectors and wire harness. And we trade our products with our clients directly.

Q: Can you do OEM and ODM?

A: Yes, OEM and ODM are both acceptable. And our advantage and strength is to support the customers’ unique design. And we can offer the design and engineering support for the customization.

Q: When can I get the price?
A: Usually we quote within 8 hours after we get your inquiry.

Q: What’s your MOQ?

A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer’s exact situation.

Shenzhen Shinelinkconn Technology Co., Ltd., established in 2009, is specialized in the development, manufacturing and marketing of a variety of connectors, wire harness and cable assembly. Our products are widely applied in industrial, automation, automotive, medical, communications, battery/motor/electric control system of new energy vehicles and photovoltaic inverter system etc.

Our main products include:

· Automotive connectors, such as MQS pin panels and sockets 2.54 and 2.0mm pitch, AMPSEAL series 4.0mm pitch male headers and housings,

. Automobile or car light connectors, including 4.14mm, 2.0mm, 3.0mm, 3.96mm and 4.2mm pitch connectors;

. FAKRA and HSD connector;

. Telecom connectors, such as high speed connectors, hard metric connector, champ connectors, delander connectors,

. Industrial connectors, including SCSI, pull-push connectors, waterproof connectors;

· Cables and wiring harnesses: Wiring harness for Industrial equipment, Medical equipment, electric vehicle (EV), communication cables,

· Outdoor fiber assembly and adapters, ODVA and Fullaxs;

We are dedicated to be the ultimate one-stop supplier for the commodities of connectors and wire harness from research and development, fully automated production, intelligent production cells to test validation, being committed to providing highly flexible integrated solutions.

Shinelinkconn sticks to its core values: “Complete each matter attentively; treat everyone with sincerity” and carries out the management philosophy of “professional focus and harmony coexistence”. We are committed to sustainable growth and development of corporate brand by creating and providing excellent value to its customers, teams, partners and society.
